Motorcycle Spark Plug Types & Features

Published On 27-Feb-2019 09:43am , By Ashik Mahmud

Motorcycle Spark Plug is an important part of the engine that initiates the ignition and combustion process continues. So the spark plug plays a vital role accordingly it influences the engine performance. So today here we came with Motorcycle Spark Plug Types & Features to detail you up with the different type of spark plugs.

Motorcycle Spark Plug

You know the spark plug is the tool for handing over electric power from an ignition device to the combustion chamber of a spark ignition engine. It ignites the compressed gas or air aggregate thru an electrically powered spark in the engine is called spark plug.

In 1860 Etienne Lenoir used an electrically powered spark plug in his gas engine the primary internal combustion piston engine. Lenoir credited with the discovery of the spark plug. Then Helen Blair Bartlett performed a vital characteristic in making in making the insulator in 1930.

How to Choose Proper Spark Plug

This is one of the most questioning troubles which spark plug you have to pick out. The answer within reason simple. The location in which people get most hung up on the subject which spark plugs are right for your motorcycle engine. The brief answer is to stick the plugs recommended inside the proprietor’s guide. The manufacturer is aware of precisely what every engine wishes and the intended spark plugs will meet those desires exactly.

Spark plugs ought to have some performance or overall performance advantage while it hot or bloodless. And that is why from time to time the case in a few engines its better option is production facility-precise plugs. That's why we are going to represent you Motorcycle Spark Plug Types & Features.

Motorcycle Spark Plug Types & Features

Before stepping into the differences some of the forms of spark plug we are elaborating two important factors that define the capability of the spark plug. Keeping in mind those  elements you may be capable of get the maximum from your spark plug selection.

  • The first aspect you need to keep in mind that the spark produce with the useful resource of the spark plug is between two elements. These elements are called ‘center electrode’ and ‘aspect electrode’. The spark between the ones two electrodes is from the sharpest factor of both electrodes. Now to keep the electricity of spark among those electrodes and regular spark plug you need to take into account that the sharp factors should be strong sufficient to live to sharpen for a long term.
  • The 2nd thing is the diameter of the center electrode. The center electrode’s diameter determines the cutting-edge had to generate the spark. If the diameter of the center electrode is greater it will require more current to generate a spark in comparison to the center electrode having a smaller diameter.

Whatsoever there are four different spark plug types available in renowned manufacturers. So what do you consider you studied which is better? We’ll similarly explain the versions among platinum spark plugs, copper spark plugs, iridium spark plugs, and different spark plug types. Plus we’ll offer you with some stable recommendation on which can be the satisfactory spark plugs for your vehicle.

Spark Plug Types

CLICK HERE TO SEE Motorcycle Spark Plugs & Some Maintenance Tips

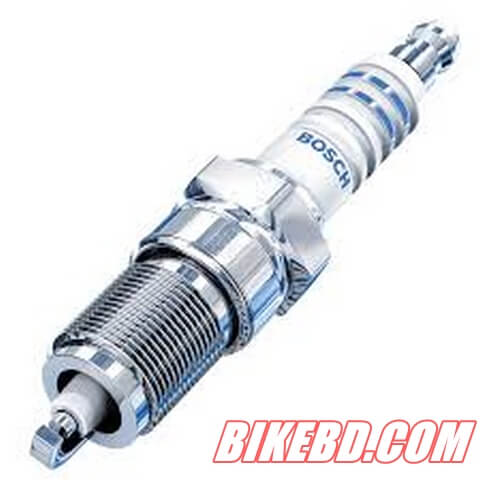

Copper Spark Plug

The copper spark plug is the most common and basic type of spark plug for internal combustion engines. It has a stable copper core but the enterprise give up of the center electrode is truly a 2.5mm diameter nickel alloy. That’s the most important diameter electrode of all of the spark plug types.

Remember the smaller the diameter the less voltage required to initiate the spark. Nickel alloy is also softer than either platinum or iridium, so the pointy firing area you get proper out of the container has a bent to wear out fast. Despite the one's shortcomings, copper spark plugs are although proper preference for certain packages.

Copper spark plugs are basically fine for older motors with low voltage distributor based absolutely ignition systems. Don’t use copper spark plugs in excessive-power distributor-much less ignition machine (DIS) or coil-on-plug (COP) ignition systems. They’ll be placed on out too brief.

There’s one exception to that recommendation. Some past due-model high overall overall performance engines had been designed particularly for copper spark plugs. In those times copper spark plugs are considered to be immoderate performance spark plugs. If your proprietor’s manual calls for copper spark plugs, don’t upgrade to platinum spark plugs or iridium spark plugs.

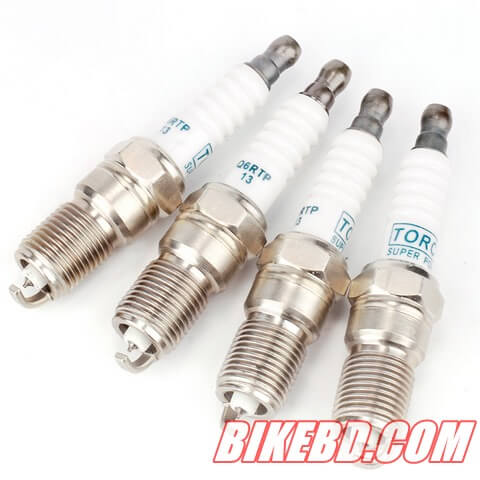

single platinum spark plug

Single Platinum Spark Plug

A single platinum spark plug is a particular format of the copper spark plug. Here a platinum disc introduced to the top of the center electrode. We comprehend earlier the nickel alloy is weaker than platinum. On the beneficial side, the Platinum spark plugs run a bit warmer,  and its self stopping of deposit buildup and fouling.

Platinum spark plugs are generally the satisfactory spark plugs for greater latest motors with electronics distributor based ignition systems (DIS). If your owner’s guide recommends platinum spark plugs, don’t downgrade to copper spark plugs to save coins. However, you could enhance to both double platinum spark plugs and iridium spark plugs.

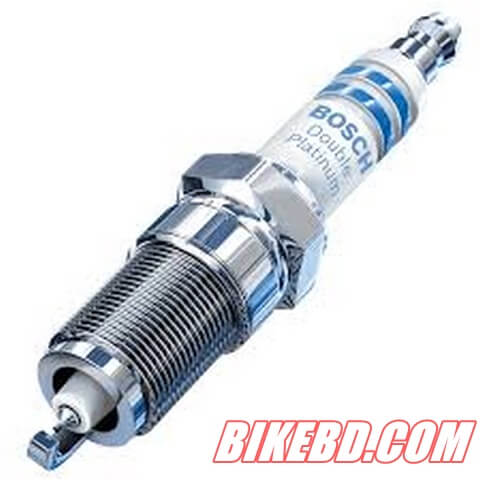

double platinum spark plug

Double Platinum Spark Plug

The Double platinum spark plugs have been designed for ‘waste spark’ DIS. In a waste spark gadget, the spark jumps from the middle electrode to the aspect electrode to side electrode for the cylinder that’s on the compression stroke. To go back the electric pulse lower back to the ignition coil %, the spark jumps backwards at the associate cylinder.

Since the associate cylinder is on its exhaust stroke, not anything ignites and the spark is “wasted”. Hence you can’t use unmarried platinum spark plugs or traditional copper spark plugs in those structures because the element electrodes aren’t designed to deal with the opposite spark. But double platinum spark plugs with a platinum disc welded to their side electrode, paintings particularly well. Both the center and aspect platinum discs stay sharp, allowing sparks to fly effortlessly in each guideline without inflicting fast electrode put on.

If your proprietor’s manual recommends double platinum spark plugs, then the ones are the quality spark plugs to use. Never downgrade to single platinum spark plugs or copper spark plugs. However, you could improve to an iridium/platinum mixture plug.

Motorcycle Spark Plug Types

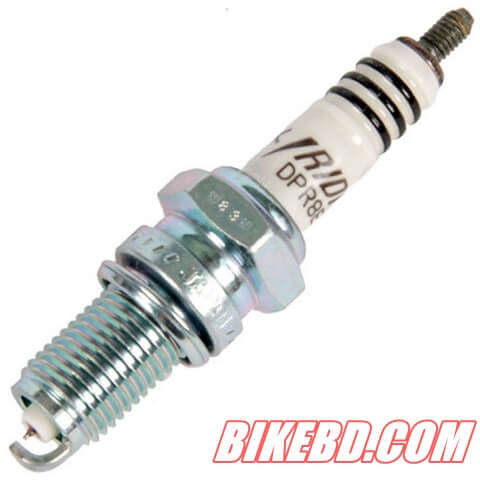

IRIDIUM Spark Plug

The Iridium Spark plug is the most efficient and performance oriented spark plug these days. Now the iridium spark plugs iridium is a more potent fabric than platinum. So virtually iridium spark plugs are more potent than platinum ones and that they last up to 25% longer in common.

The diameter of the center electrode at the iridium spark plugs is smaller due to iridium being an costly cloth. So you may see as much as 0.4mm diameter of the center electrode in iridium spark plugs. The smaller center electrode isn't just there for manufacture to keep cash however also it's miles the maximum green performer of all of the spark plugs. So this is the best solution for modern hi-tech motorcycle engines.

So, readers, that's all about the discussion of Motorcycle Spark Plug Types & Features. Hope you have enjoyed the discussion. So be with us for more updates and don't forget to subscribe in our YOUTUBE channel.
