Haojue KA135 Feature Review

Published On 19-Oct-2019 09:15am , By Raihan Opu

Karnaphuli Bangladesh therefore, Haojue Motorcycles Bangladesh brings Haojue KA135 motorcycle in Bangladesh. It’s a commuter category motorcycle that comes with some nice & sporty features. Thereby, here we came with the Haojue KA135 Feature Review to learn the detail of the motorcycle.

haojue ka135 feature feature review

Haojue KA135 Feature Review - Design

Haojue KA135 is solely a commuter motorcycle. But it designed sporty with an energetic look & design. It adopted the naked sport styling. Therefore, it looks & appearances appeared to be something more than a conventional commuter.

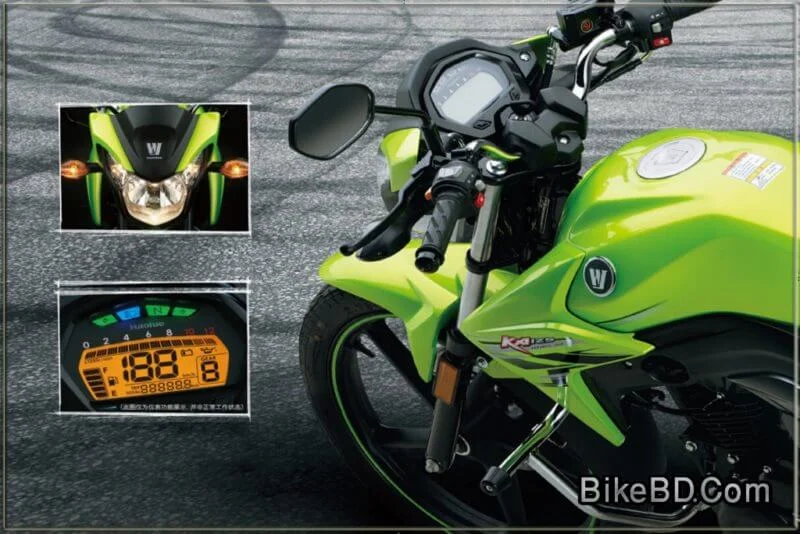

The KA135 comes with an advanced design with arrowhead headlamp, muscled fuel tank, split seat, and sporty body-panels. The headlamp is designed aggressive including pilot lamps, multi-shade housing, and sporty dents at the front. The ODO is compact and it’s a fully digital unit.

Haojue KA135 Feature Review

The fuel tank is quite a bolder part of the bike. It featured sporty dents on both sides. In addition, the extended plastic shrouds gave a sportier appearance. Similarly, the side panel also crafted with both matt and glossy parts. Hence, after the sporty split seat, the tail is narrow and sharper.

Further, the motorcycle featured nice colors & shades. The double horn grab-rail, exhaust heat muffler, and mudguards all are designed matched with its sporty profile. In addition, the crash guard, Sharee-guard added to ensure daily commuting comforts.

Frame, Wheel, Brake, & Suspension System

The Haojue KA135 build on a steel frame. It comes with alloy rims with tubeless tires in its both wheels. Here, the tires are quite a narrower profile tire. Those help to ensure maximum fuel economy and quick acceleration.

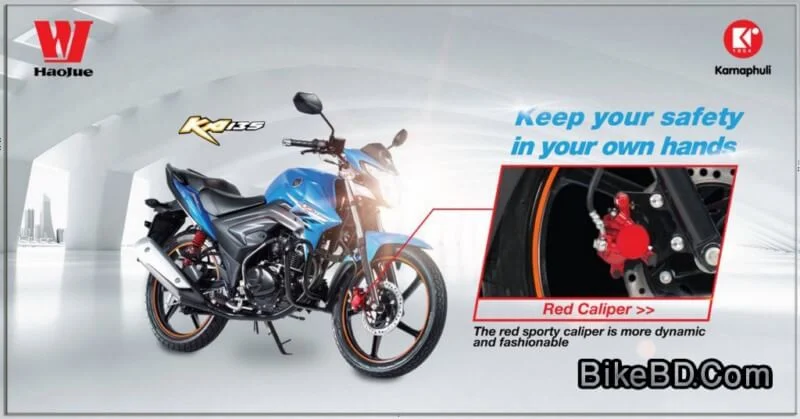

In the braking system, it featured with 270mm hydraulic disk brake in the front. The rear setup is a conventional drum type. Further, it comes with an upright telescopic-fork suspension system at the front. Meanwhile, the rear setup is double unit those backed with external coil springs.

Haojue KA135 Feature Review

Riding & Controlling Feature

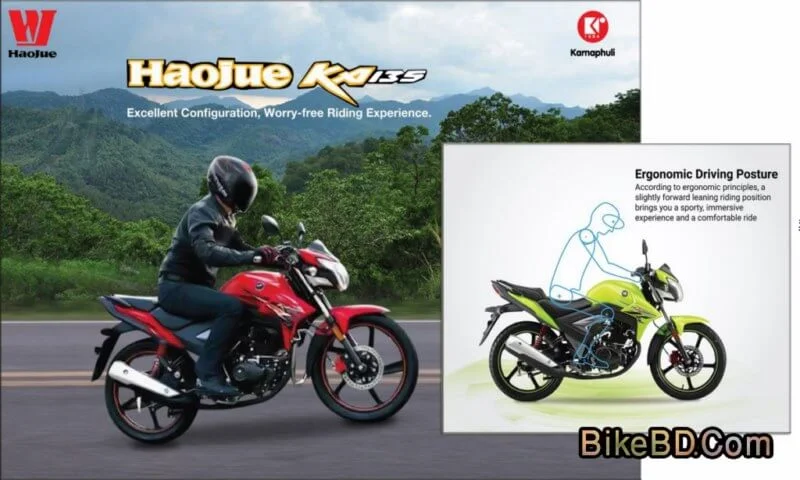

The Haojue KA135 profiled with some comfortable commuting features. The riding ergonomics is completely upright with pipe handle handlebar and other control lever setups. The split seat is dedicated indicating spacious arrangements both for the rider and pillion.

Further, the grabrail horn, Sharee-guard, crash guard, etc. give extra advantages in different commuting conditions. Moreover, the 18” wheels allow easier commuting both on odd and even surfaces. Finally, the 126kg lightweight allows nimble and easier handling of the motorcycle.

Engine & Performances

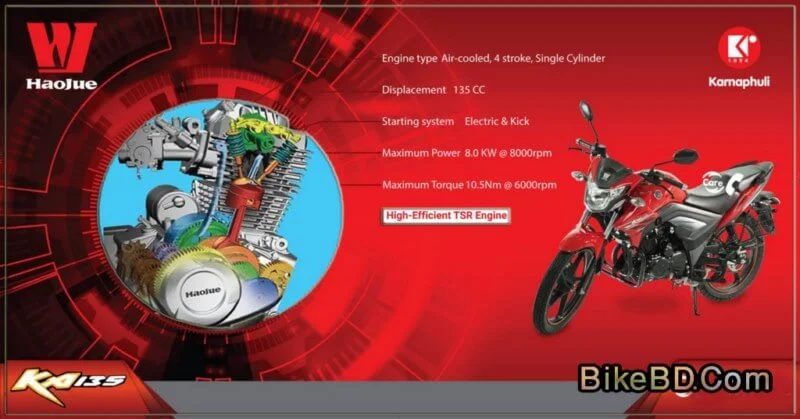

The Haojue KA135 powered with a 135cc engine with the bore & stroke of 57.5mmX52.5mm. The engine is a single-cylinder, four-stroke, air-cooled engine. It featured with SOHC, 2-valve and carburetor fuel feeding system.

Here, the transmission is featured with 5-speed return type gears, where the starting electric including conventional kick starter. The engine can produce a maximum 8.0Kw of power and 10.5NM of torque. Further, the high-efficient TSR engine provides maximum possible performances including a significant fuel economy.

Haojue KA135 Specification

SpecificationHaojue KA135
EngineSingle Cylinder, Four Stroke, Air Cooled, 2 Valve, SOHC Engine
Bore x Stroke57.5mm x 52.5mm
Compression Ratio9.6:1
Maximum Power8.0kW@8,000RPM
Maximum Torque10.5NM@6,500RPM
Fuel SupplyCarburetor
Starting MethodKick & Electric Start
Clutch TypeWet, Multiple-disc
LubricationWet Sump
Transmission5-Speed, Return Type


Frame TypeSteel Frame
Dimension (LxWxH)1,960mm x725mm x 1,060mm
Ground Clearance170mm
Saddle Height760mm
Weight (Kerb)126 Kg
Fuel Capacity12 Liters
Fuel Economy
Top Speed96 km/h (Internally Tested)

Wheel, Brake & Suspension

The suspension (Front/Rear)Hydraulic Telescopic Fork / Spring Loaded Double
Brake system (Front/Rear)Hydraulic Disk / Drum Type
Tire size (Front / Rear)Front: 2.75-18 Rear: 90/90-18 (Both Tubeless)

Headlamp12V 35/35W Bulb (LED Tail Lamp)
SpeedometerFully Digital

*All the specifications are subject to change upon company rules, policy, offer & promotion. BikeBD is not liable for the changes.
