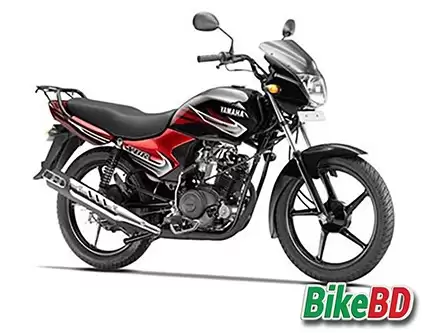

Yamaha YBR 110

Yamaha YBR 110 Specifications

Engine type   :   Air-cooled, 4-stroke, SOHC

Displacement : 106 cc

Bore & Stroke: 49.0 × 56.0 mm

Compression ratio  :     9.00:1

Maximum power     :    7.6 PS / 7,500 rpm

Maximum torque    :     7.9 N.m / 6,000 rpm

Starting method     :      Electric starter and Kickstarter

Lubrication Type   :      Wet sump

Cylinder layout       :     Single cylinder

Clutch type   :   Wet, multiple-disc

Fuel Supply    : Carburettor

Battery: 12 V, 5.0 Ah

HeadLight     :   12 V, 35/35W

Caster / trail　　:        26.4 degree/ 91 mm

Transmission type　 :　          Constant Mesh 4-Speed

Gear ratios  :   1st=3.000, 2nd＝1.688, 3rd:=1.200, 4th=0.875

Primary / Secondary reduction ratio　:           3.722/3.214

Frame type    :  Double cradle type-Tubular

Front brake   :   Drum

Rear brake    :   Drum

Tyre Size (Front/Rear)       :     2.75 X 18″ 4PR / 3.00 X 18″ 6PR

Suspension (Front/Rear)      :   Telescopic/Swing arm

Overall length x width x height     :      2,040mm x 715mm × 1,095mm

Kerb Weight  :  126 kg

Wheelbase   :    1,285mm

Minimum ground clearance  :   185mm

Fuel tank volume    :     13 liters

Seat Height    :  780 mm
