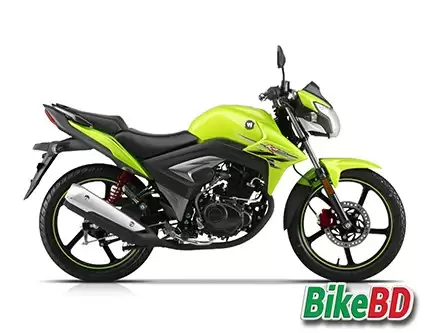

Haojue KA

Market status: Available in Bangladesh

Add to wishlistAdded to wishlistRemoved from wishlist 3
Add to compare
haojue-ka

৳ 122,000

Updated: 27th Dec 2020

User Opinion

3
0

Key Specs

Displacement

135 CC

Mileage

40 kmpl

Maximum Power

10.7 bhp@ 8000 rpm

Maximum Torque

11.3 Nm @ 6000 rpm

Visitor Rating of Haojue KA

Performance

100%

Looks and Design

100%

Service

100%

Service and Spares

100%

Riding Comfort & Balance

100%

Description

The motorcycle culture in Bangladesh has come a long way now. People used to scrunch their noses whenever a new Chinese motorcycle would make its way into the market. But in the last decade, people have been accepting and appreciating Chinese motorcycles. Manufacturers like Lifan, Haojue, and Victor R are now regularly releasing motorcycles in the market. Haojue KA, also known as Haojue KA 135, a 135cc commuting motorcycle, is also making some noise in the motorcycle industry.

Haojue, a Chinese motorcycle manufacturer, has been doing business in Bangladesh through Karnaphuli Groups. Haojue is considered one of the top motorcycle manufacturers in China. Haojue KA is a commuter bike by Haojue. The Haojue KA is a well-built, high-quality commuter bike.

Key Features:
The first and foremost feature of the Haojue KA is the design. The bike comes with a muscular design. The air scoops and the muscular tank makes the bike look nothing less than a 150cc bike. It has a lot of curves and edges on the bike, which makes it look very attractive.

The Haojue KA has a full halogen setup. The headlight is a large halogen bulb with a wide field of view. The indicators are still of the old design and the taillight is large enough to be noticed from quite a distance. The overall halogen setup is sufficient for this bike.

The Haojue KA comes in six different colors internationally. However, only four colors are available in Bangladesh. They are:

  • Black.
  • Blue.
  • Green.
  • Red.

However, the colors may not be readily available at all dealerships. The bike has sporty decals and the colors of the decals match the color of the bike very well.

The Haojue KA comes with a very informative instrument cluster. The instrument cluster contains everything required by a rider and more. The instrument cluster has a speedometer, an odometer, and a fuel gauge. As additional features, the bike also comes with an engine oil indicator and a gear position indicator.

Physical Attributes:
The Haojue KA is a large bike. But it has a seat height of 760mm, which is suitable for riders above 5’1” and below 5’7”, but the riders beyond that height might find it a bit difficult to ride on. The bike also has a ground clearance of 170mm, which is very suitable for Bangladesh. It also has a tank of 12liters, which ensures that the rider doesn’t run out of fuel very often in long rides.

The Haojue KA has length, width, height, and weight of 1960mm, 725mm, 1060mm, and 126kg respectively. The bike is of average weight, which will ensure adequate stability. The bike has a wheelbase of 1285mm, which is quite short, and that might make the bike somewhat unstable in corners. However, the bike is nimble and compact.

Engine and Transmission:
The Haojue KA comes with a single-cylinder, 4-stroke, 2-valve, and 135cc engine. The engine is carbureted and air-cooled. The engine pumps out around 10.7BHP of power at 8000rpm and 10.5Nm of torque at 6000rpm. Even though the bike is carbureted, the low power allows the bike to be quite efficient. Hence the bike has a mileage of around 45-50kmpl combined.

The Haojue KA has a wet multi-plate clutch system. It has a 5-speed gearbox, which will allow the bike to overtake other vehicles easily. The bike is expected to have a top speed of around 90-105kmph.

Brakes, Suspensions, and Wheels:
The Haojue KA has a disc-drum brake setup. The front has a disc brake which is quite commendable for a 135cc bike of this price. The front disc is expected to respond well. The rear brake being drum may perform well, but one should not get their hopes up, as it is a drum brake.

The Haojue KA has telescopic suspensions at the front, and the rear has spring-loaded twin shock-absorbing suspensions. The front suspension is expected to perform quite well. However, the rear suspension may not perform significantly well on bumpy roads.

The Haojue KA has alloy wheels. The front and rear wheels have 2.75/80, and 90/90 tires respectively. The front tire is perfect for the bike. However, the rear tire would have been better and performed at the top of its class if it was of 100 sections.

Target Audience:
The Haojue KA is a 135cc commuter bike. It is a stylish bike with sporty looks. The sporty looks may attract the youngsters and the reasonable features with good mileage will attract the people who are looking for a bike with good looks and good mileage.

Competitors:
The Haojue KA is a commuter bike, hence it has quite a few competitors.
Honda CB Shine SP.
Bajaj Discover 125.
Hero Ignitor 125.
Yamaha Soluto.
Hero Glamour.

The Haojue KA is a very good commuter bike and is very much commendable. It ticks all the boxes of a good commuter bike. The Haojue KA is such a good bike that it can easily be one of the best commuter bikes of the 125-135cc segment.

8.5Expert Score
Key Features
The motorcycle culture in Bangladesh has come a long way now. People used to scrunch their noses whenever a new Chinese motorcycle would make its way into the market. But in the last decade, people have been accepting and appreciating Chinese motorcycles. Manufacturers like Lifan, Haojue, and Victor R are now regularly releasing motorcycles in […]
Performance
9
Durability
8
Braking
8.5
Suspension
8
Mileage
9
Features
8.5
Price
8
Service Center
8

Additional information

Specification: Haojue KA

1. Details
Price 1,22,000 BDT
CC Category 135 CC
Category Standard Bike
Distributor karnaphuli motors Ltd
Product Availability Available
2. Engine & Transmission
Displacement 135 CC
Engine Type Single Cylinder, 4-Stroke
Max Power 10.7 bhp@ 8000 rpm
Max Torque 11.3 Nm @ 6000 rpm
BORE x STROKE 57.3mm × 52.5 mm
Gears 5
Compression Ratio 9.6:1
Clutch Wet
Engine Cooling Air Cooled
Fuel Supply Carburetor
Starting Method Kick & Self Starter
Transmission Type Manual
3. Dimensions
Fuel Tank Capacity 13.3 Litres
Ground Clearance 178 mm
Height 1095 mm
Overall Length 1995 mm
Overall Width 760 mm
Seat Height 770 mm
Weight 760 mm
Wheelbase 1280 mm
4. Brakes, Wheels & Suspensions
Braking Normal Braking System
Front Brake Disc
Front Suspension Telescopic
Front Tyre 2.75-18
Rear Brake Drum
Rear Suspension Twin Shock
Rear Tyre 90/90-16
Tyre Type Tubeless
Wheel Type Alloy
5. Top Speed and Mileage
Mileage (Average) 55 kmpl (Approx)
Top Speed 100 Kmph (Approx)
6. Electricals
Battery Maintenance Free 12 V
Connection Type DC
Headlight 12V 35/35W (Halogen)
Indicators Bulb
Tail Light LED
7. Features
Engine Kill Switch Yes
Handle Type Rod Handle Bar
Fuel Gauge Digital
Odometer Digital
Pass Switch Yes
RPM Meter Analog
Seat type Single Seat
Speedometer Digital

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Haojue KA”

Your email address will not be published.

Performance
Looks and Design
Service
Service and Spares
Riding Comfort & Balance

Most Popular FAQ

FAQ Ask a Question

Success!

Question Added Successfully

Private Question..?

Sort by
  • Where is the Haojue originated?

    Answer: The Haojue is a Chinese motorcycle manufacturing brand.

    Answer by : rafi on Dec 27, 2020 05:12:37 AM
  • Is there any other version of Haojue KA?

    Answer: No!

    Answer by : rafi on Dec 27, 2020 05:12:58 AM
  • Is Haojue a good brand?

    Answer: Haojue has been the No. 1 motorcycle manufacturer in China for quite a while. It is also the manufacturer of Suzuki motorcycles in China.

    Answer by : rafi on Dec 27, 2020 05:13:21 AM
  • What is the mileage of the Haojue KA?

    Answer: The Haojue KA has a mileage of 45-50kmpl combined.

    Answer by : rafi on Dec 27, 2020 05:13:45 AM
